SMA Waveguide to Coax Adapters
2019.08.26
| No. | Model Number | Description | Note |
|---|---|---|---|
| 1 | SMA/BJ100-KF | WR90 to SMA female right angle adapters | BJ100=WR90 |
| 2 | SMA/BJ100-KF1B | WR90 to SMA female end launch adapters | K=female |
| 3 | SMA/BJ100A-KF | WR90A to SMA female right angle adapters with hermetic ring | |
| 4 | SMA/BJ100A-KF1 | WR90A to SMA female right angle adapters | J=male |
| 5 | SMA/BJ120-KF | WR75 to SMA female right angle adapters with height 25.8mm | BJ120=WR75 |
| 6 | SMA/BJ120-KF1 | WR75 to SMA female end launch adapters | |
| 7 | SMA/BB120B-KF | WR75B to SMA male right angle adapters with height 30mm | |
| 8 | SMA/BJ140-KF | WR62 to SMA female right angle adapters | BJ40=WR62 |
| 9 | SMA/BJ140-KF1 | WR62 to SMA female end launch adapters | |
| 10 | SMA/BJ180-KF | WR51 to SMA female end launch adapters | BJ180=WR51 |
| 11 | SMA/BJ180-KF1A | WR51 to SMA female end launch adapters |
Cross-references of waveguide Standards
| Chinese Standards | International Standards | Frequency Range (GHz) |
| BJ84 | WR112 | 6.57~9.99 |
| BJ100 | WR90 | 8.20~12.5 |
| BJ120 | WR75 | 9.84~15.0 |
| BJ140 | WR62 | 11.9~18.0 |
| BJ180 | WR51 | 14.5~22.0 |
| BJ220 | WR42 | 17.6~26.7 |
| BJ260 | WR34 | 21.7~33.0 |
| BJ320 | WR28 | 26.3~40.0 |
| BJ400 | WR22 | 32.9~50.1 |

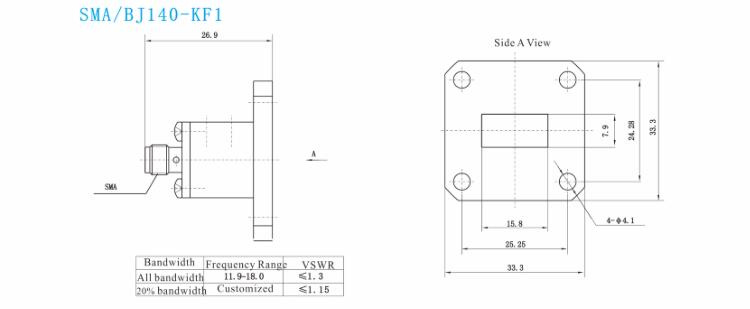

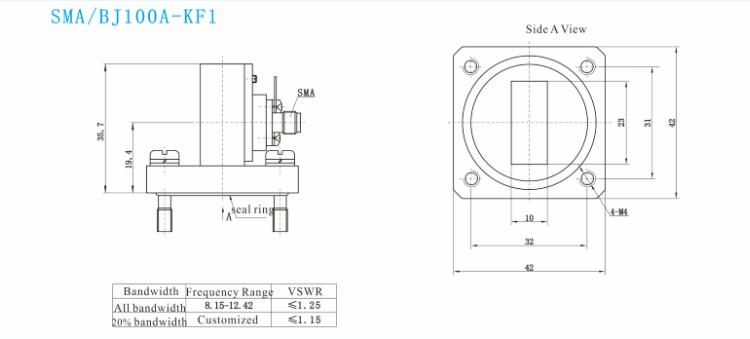

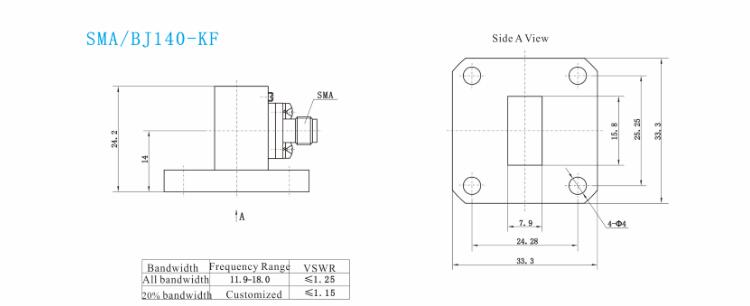

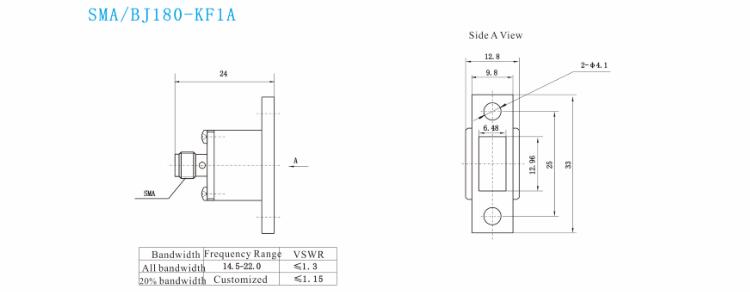

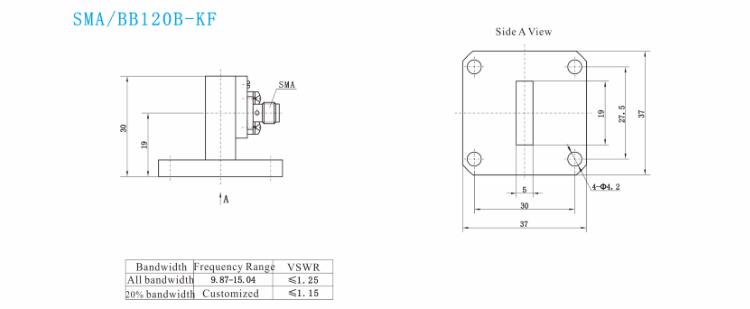

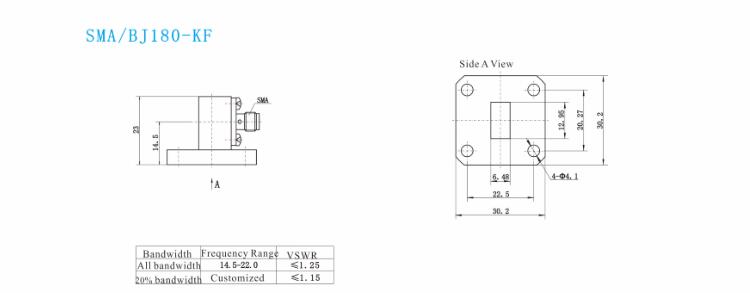

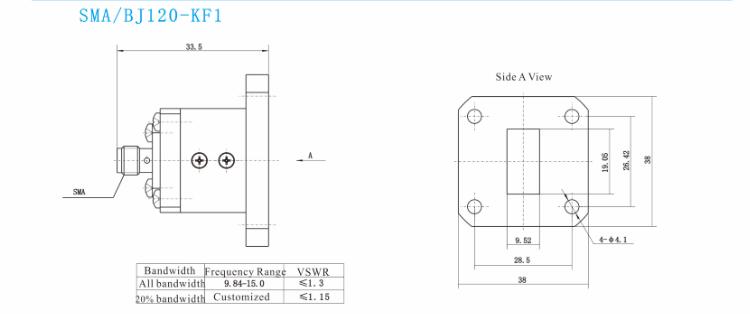

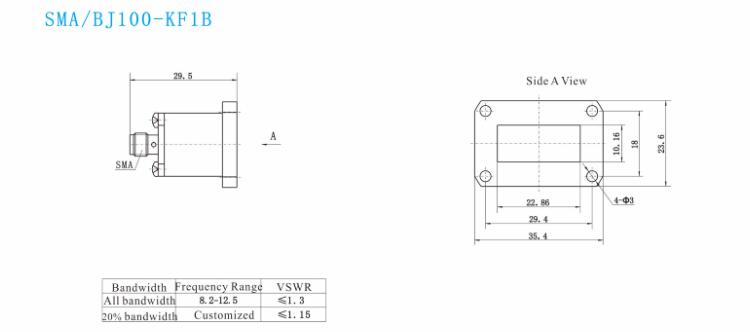

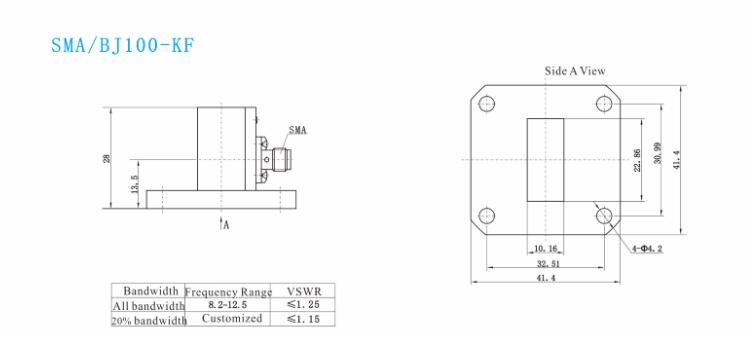

Outline Drawing(unit: mm)
