2.92mm(K) Waveguide to Coaxial Adapter
2019.08.24
| No. | Model No. | Description | Note |
|---|---|---|---|
| 1 | K/BJ220-KF2 | WR42 to K(2.92mm) female right angle adapters | BJ220=WR42 |
| 2 | K/BJ220-KF1 | WR42 to K(2.92mm) female end launch adapters | K=female |
| 3 | K/BJ260-KF | WR34 to K(2.92mm) female right angle adapters | BJ260=WR34 |
| 4 | K/BJ260-KF1 | WR34 to K(2.92mm) female end launch adapters | |
| 5 | K/BJ320-KF | WR28 to K(2.92mm) female right angle adaptersBJ320=WR28 | BJ320=WR28 |
| 6 | K/BJ320-KF1 | WR28 to K(2.92mm) female end launch adapters | |
| 7 | K/BJ320-JF1 | WR28 to K(2.92mm) male end launch adapters | J=male |
| 8 | K/BJ400-KF1 | WR22 to K(2.92mm) female end launch adaptersBJ400=WR22 | BJ400=WR22 |
| 9 | K/24JS18000-KF | WR24JS18000 to K(2.92mm) female end launch adapters |
Cross-references of waveguide Standards
Chinese Standards | International Standards| Frequency RangeGHz
BJ70 | WR137 | 5.38~8.17
BJ84 | WR112 | 6.57~9.99
BJ100 | WR90 | 8.20~12.5
BJ120 | WR75 | 9.84~15.0
BJ140 | WR62 | 11.9~18.0
BJ180 | WR51 | 14.5~22.0
BJ220 | WR42 | 17.6~26.7
BJ260 | WR34 | 21.7~33.0
BJ320 | WR28 | 26.3~40.0

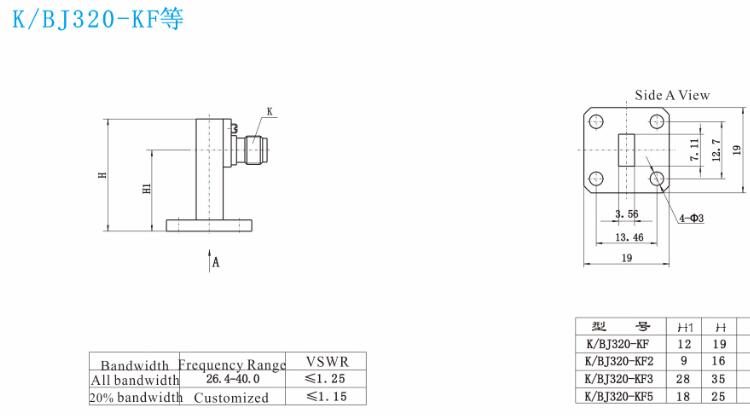

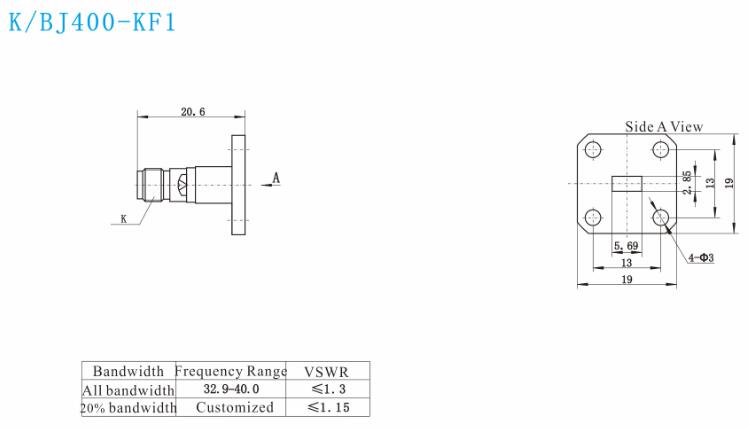

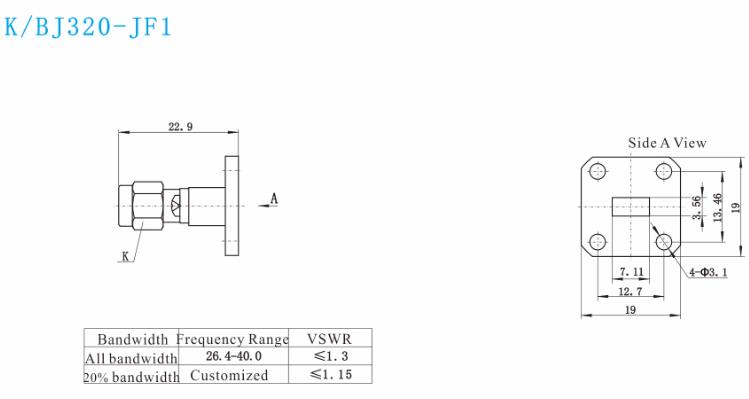

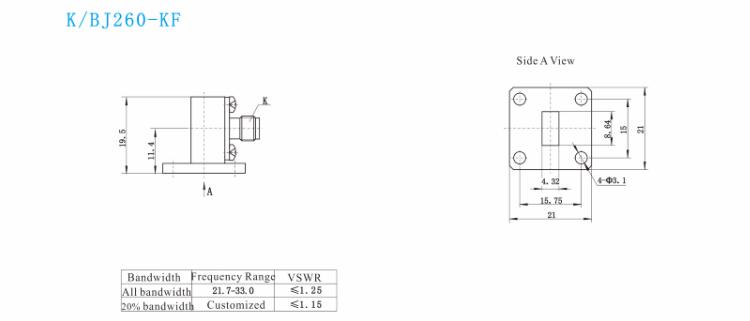

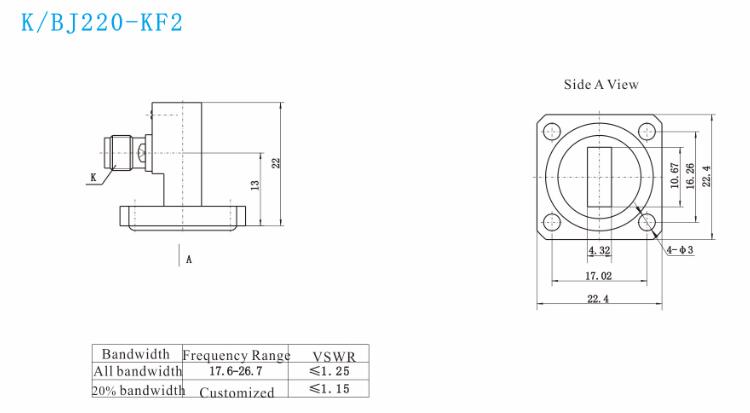

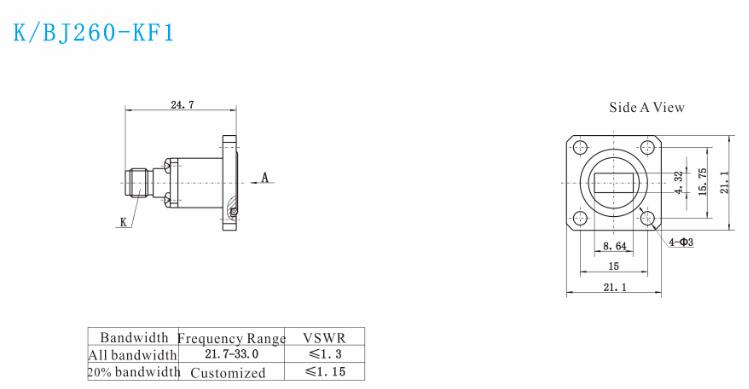

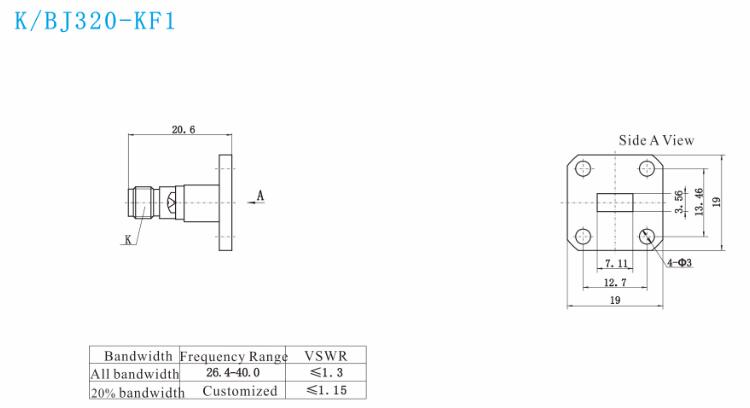

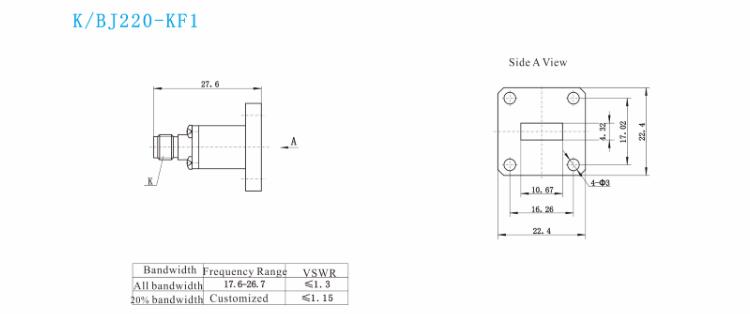

Outline Drawing(unit: mm)
