N Type Waveguide to Coaxial Adapters

2019.08.26

**List of Waveguide to N Type Adapters:**
No.	Model Number	Description	Note
1	N/BJ100-KF	WR90 to N female right angle adapters	BJ100=WR90
2	N/BJ120-KF	WR75 to N female right angle adapters	BJ120=WR75
3	N/BJ140-KF1	WR62 to N female end launch adapters	BJ140=WR62

Cross-references of waveguide Standards

Chinese Standards	International Standards	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1

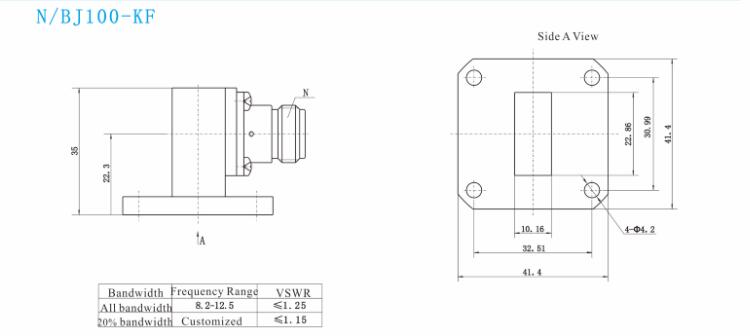

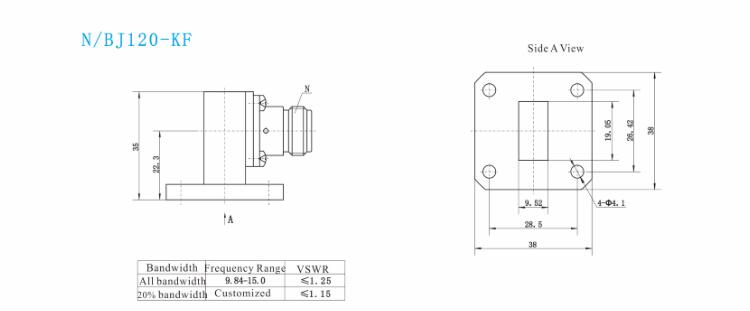

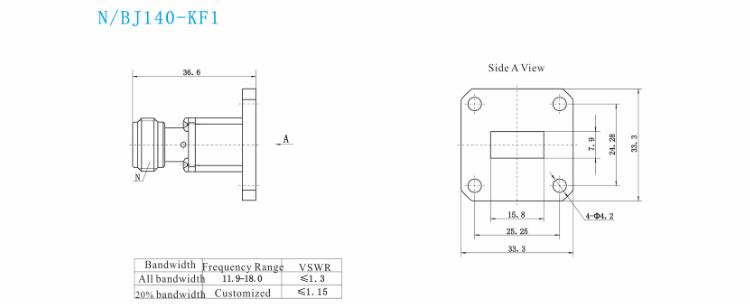

Outline Drawing(unit: mm)
