SMA Male to Male RF Cable Assembly Copper Material Connector 50ohm
2019.04.19

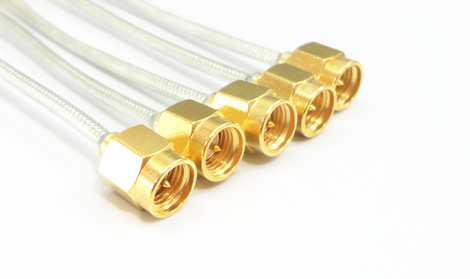

SMA Male to Male RF Cable Assembly Copper Material Connector 50ohm
This cable Assembly is combine with our company self-made precision connector connect HUBER+SUHNER flexible soft cable connectors, with characteristics of wide bandwidth,low loss, good homogeneity, It’s mainly used in avionics, phased array radar, microwave RF device.
Specifiacation:
Electrical Characteristics | ||
Characteristic Impedance | 50ohm | |
Frequency Range | 0~3GHz | |
VSWR | ≤1.22 | |
Dielectric Withstanding Voltage | ≥1000VRMS,50Hz, at sea level | |
Dielectric Resistance | ≥1000MΩ | |
Contact Resistance | Center conductor | ≤3mΩ |
Outer conductor | ≤2mΩ | |
Material & Mechanical Characteristics | ||
Body | Brass Au Plated | |
Insulator | PTFE | |
Center conductor | Brass Au Plated | |
Durability | Mating cycles ≥500 | |
Temperature Range | -55-+155℃ | |
Suitable for cable | RG316 | |
Interface | According to IEC60169-52 | |
Application:
* Basic facility
* Computer/LANs
* Instrumentation
* Automotive
* Mobile communication
* Instrumentation
* Base Station
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Radio, TV aerial system
