MMCX Male Right Angle to MMCX Male RF Cable Assembly

2019.04.20

MMCX Male Right Angle to MMCX Male RF Cable Assembly



This cable Assembly is combine with our company self-made precision connector connect HUBER+SUHNER flexible soft cable connectors, with characteristics of wide bandwidth,low loss, good homogeneity, It’s mainly used in avionics, phased array radar, microwave RF device

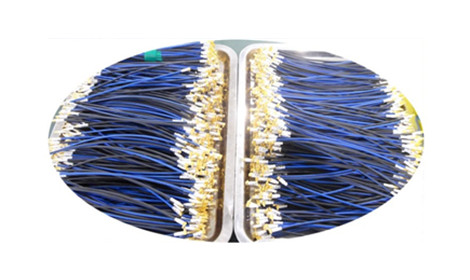

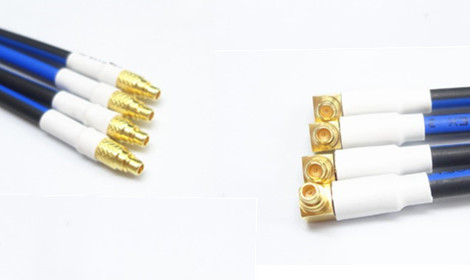

mmcx 1.jpgMMCX 2.jpg

Specifiacation:

Electrical Characteristics

Characteristic Impedance

50ohm

Frequency Range

0~3GHz

VSWR

≤1.22

Dielectric Withstanding Voltage

≥1000VRMS,50Hz, at sea level

Dielectric Resistance

≥1000MΩ

Contact Resistance

Center conductor

≤3mΩ

Outer conductor

≤2mΩ

Material & Mechanical Characteristics

Body

Brass                    Au Plated

Insulator

PTFE

Center conductor

Brass                    Au Plated

Durability

Mating cycles ≥500

Temperature Range

-55-+155℃

Suitable for cable

RG316

Interface

According to IEC60169-52
