SMP Female Right Angle to Female Right Angle RF Cable Assembly 50Ohm MF068 Cable 160mm long

2019.04.19

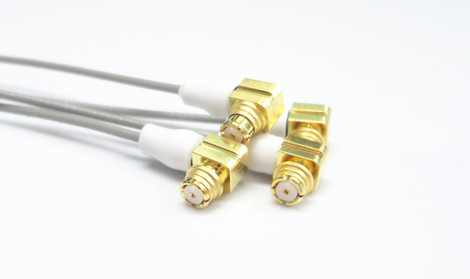

SMP Female Right Angle to Female Right Angle RF Cable Assembly

This cable Assembly is combine with our company self-made precision connector connect HUBER+SUHNER flexible soft cable connectors, with characteristics of wide bandwidth,low loss, good homogeneity, It’s mainly used in avionics, phased array radar, microwave RF device.

SMP-KW68-160 (5)_副本.jpgSMP-KW68-160 (10)_副本.jpg

Specifiacation:

Electrical Characteristics

Characteristic Impedance

50ohm

Frequency Range

0~3GHz

VSWR

≤1.22

Dielectric Withstanding Voltage

≥1000VRMS,50Hz, at sea level

Dielectric Resistance

≥1000MΩ

Contact Resistance

Center conductor

≤3mΩ

Outer conductor

≤2mΩ

Material & Mechanical Characteristics

Body

Brass                    Au Plated

Insulator

PTFE

Center conductor

Brass                    Au Plated

Durability

Mating cycles ≥500

Temperature Range

-55-+155℃

Suitable for cable

MF068

Interface

According to IEC60169-52
