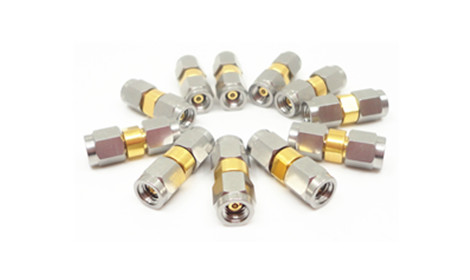

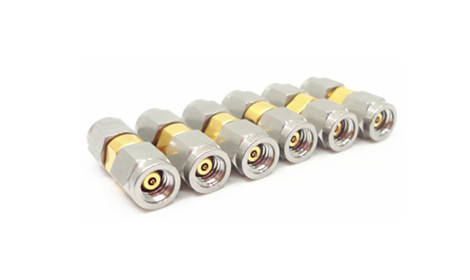

110GHz 1.0mm Male to 1.0mm Male 50Ω Adapter

2019.03.13


110GHz 1.0mm adapters manufactured by Xi'an Elite Electronic (ELT) has three models, that is female to female, female to male and male to male with VSWR 1.3.


Specification:

Electrical Characteristics

Product Model

1.0-JJ  1.0mm Male-1.0mm Male

Impedance

50Ω

Frequency Range

0.04DC~110GHz

Dielectrics Voltage-resistance

250VRMS*

Insulation Resistance

≥2000MΩ

VSWR

≤1.3

Quality Grade

Military Grade

Material & Mechanical Characteristics

Center conductor

Beryllium Bronze   Gold plated

Outer conductor

Beryllium Bronze   Gold plated; Stainless steel  Passivation

Insulation Dielectric

PLF

Temperature Range

-55 ~ +125℃


Feature

  •  VSWR of 1.3 max up to 110GHz

  •  Gold Plated Beryllium Copper Contact

  •  Contact plating according to MIL-DTL-45204

  •  Ease of use for On Wafer and Coaxial measurements

  •  Measurement accuracy and versatility for 110 GHz 1 mm test systems



Application

  • Metrology

  • Connector Saver

  • 110GHz Calibrations

  • General Purpose Test

  • 1.0mm SOLT Calibrations

  • 1.0mm Calibrations Adapter

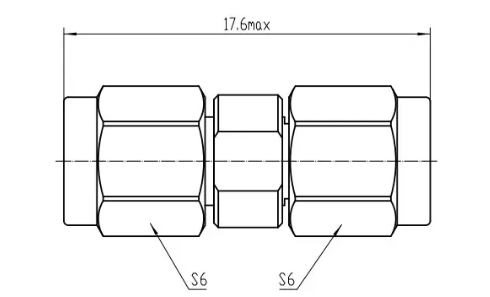

Detailed Drawing
