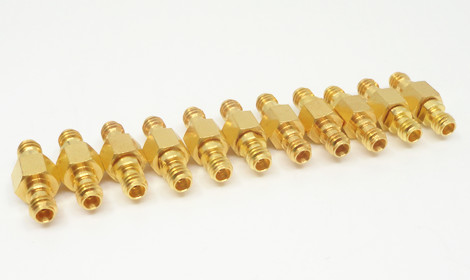

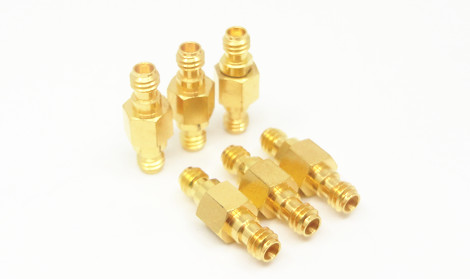

110GHz 1.0mm Female to 1.0mm Female 50Ohm Adapter
2019.03.13
110GHz 1.0mm adapters manufactured by Xi'an Elite Electronic (ELT) has three models, that is female to female, female to male and male to male with VSWR 1.3.
Specification:
Electrical Characteristics | |
Product Model | 1.0-KK 1.0mm Female-1.0mm Female |
Impedance | 50Ω |
Frequency Range | 0.04DC~110GHz |
Dielectrics Voltage-resistance | 250VRMS* |
Insulation Resistance | ≥2000MΩ |
VSWR | ≤1.3 |
Quality Grade | High Performance Grade |
Material & Mechanical Characteristics | |
Center conductor | Beryllium Bronze Gold plated |
Outer conductor | Beryllium Bronze Gold plated |
Insulation Dielectric | PLF |
Temperature Range | -55 ~ +125℃ |
Feature
VSWR of 1.3 max up to 110GHz
Gold Plated Beryllium Copper Contact
Contact plating according to MIL-DTL-45204
Ease of use for On Wafer and Coaxial measurements
Measurement accuracy and versatility for 110 GHz 1mm test systems
Application
Metrology
Connector Saver
110GHz Calibrations
General Purpose Test
1.0mm SOLT Calibrations
1.0mm Calibrations Adapter

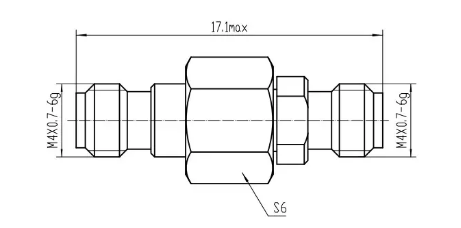

Detailed Drawing
