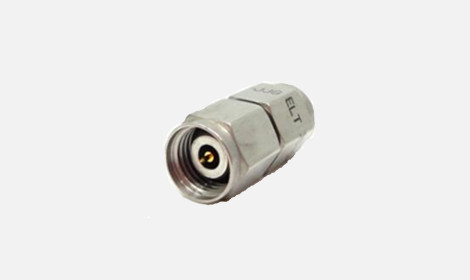

2.4mm Millimeter Wave Male to Male Straight Nickel Plated Adaptor

2018.11.27

 2.4mm Millimeter Wave Male to Male Straight Nickel Plated Adaptor


2.4 Type product is a high performance millimeter wave connector, the frequency is 50 GHz, use air interface threaded connect,with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.




Specification:

Technical Characteristics

Impedance

50Ω

Frequency Range

DC-50GHz

Rated Voltage

250VRMS(Maximum seal-level)

Dielectrics Voltage-resistance

750VRMS(Maximum seal-level)

Insulation Resistance

≥ 5000 MΩ

Contact Resistance

Outer Conductor

≤2MΩ

Center Conductor

≤3MΩ

VSMR

≤1.05+0.005f
