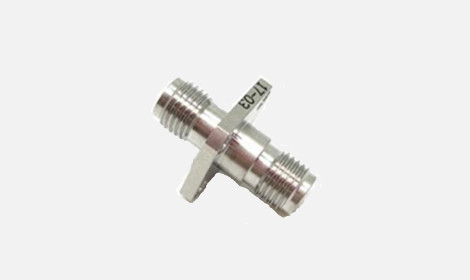

2.92mm K Type RF Coaxial Connector/Adapter

2018.11.27

2.92mm K Type RF Connector

K-type millimeter wave connectors, also called 2.92mm MMW connectors, are one of the most common millimeter wave connectors with broad frequency range upto 40GHz. They can be mated with SMA and 3.5mm connectors.These K-type (2.92mm) MMW connectors adopt air interface, which makes them small in size, light in weight and very reliable in connection etc.

2.90 _副本_副本.jpg

Specification:

Technical Characteristics
Impedance	50Ω
Frequency Range	DC-50GHz
Rated Voltage	250VRMS(Maximum seal-level)
Dielectrics Voltage-resistance	750VRMS(Maximum seal-level)
Insulation Resistance	≥ 5000 MΩ
Contact Resistance	Outer Conductor	≤2MΩ
	Center Conductor	≤3MΩ
VSMR	≤1.05+0.005f
