2.4mm Waveguide to Coax Adapters

2019.08.26

**List of Waveguide to 2.4mm Adapters:**
No.	Model Number	Description	Note
1	2.4/BJ260-KF	WR34 to 2.4mm female right angle adapters	BJ260=WR34
2	2.4/BJ260-JF	WR34 to 2.4mm male end launch adapters	J=male
3	2.4/BJ320-KF	WR28 to 2.4mm female right angle adapters	BJ320=WR28
4	2.4/BJ320-JF	WR28 to 2.4mm male right angle adapters	J=male
5	2.4/BJ400-KF	WR22 to 2.4mm female right angle adapters	BJ400=WR22

Cross-references of waveguide Standards

Chinese Standards	International Standards	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1

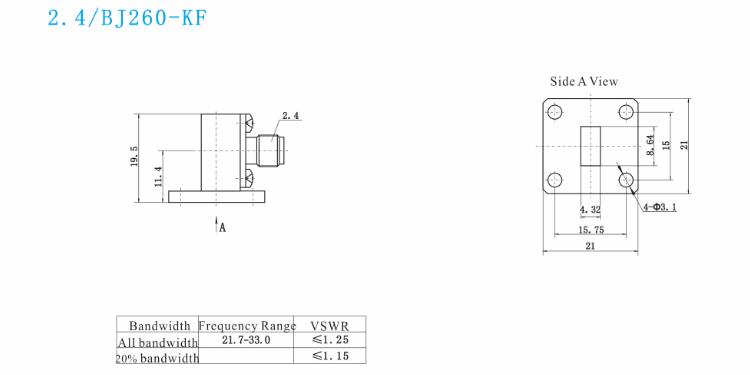

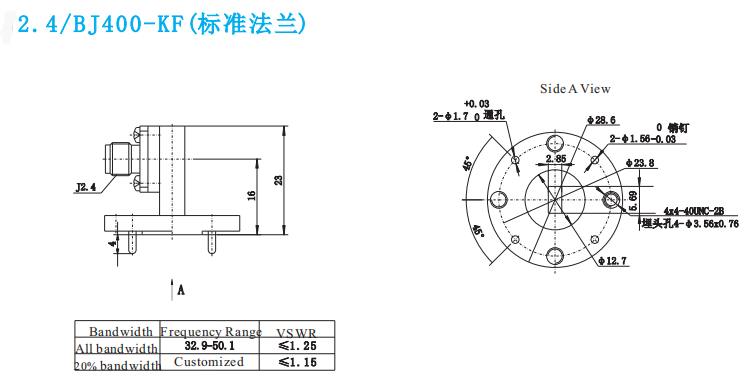

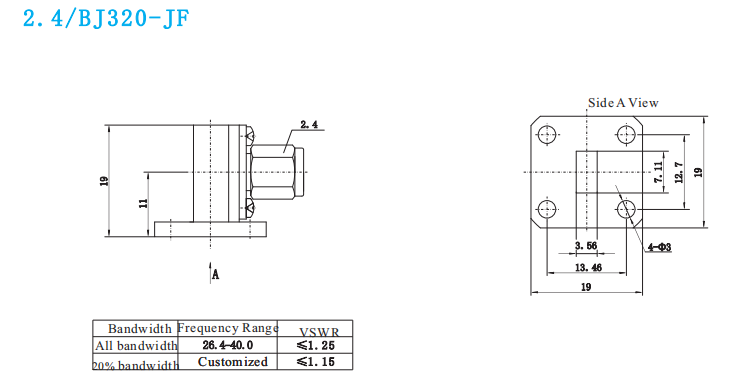

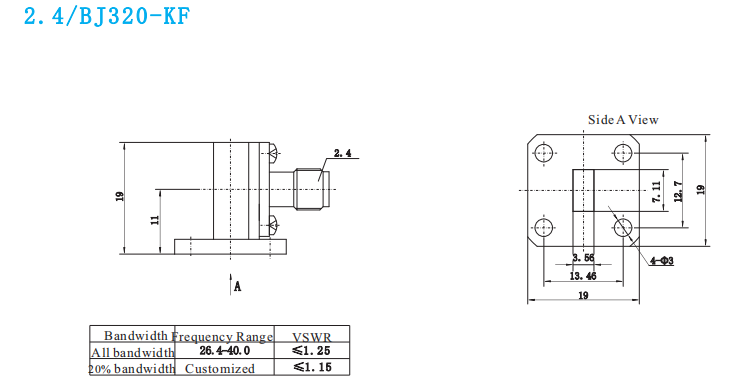

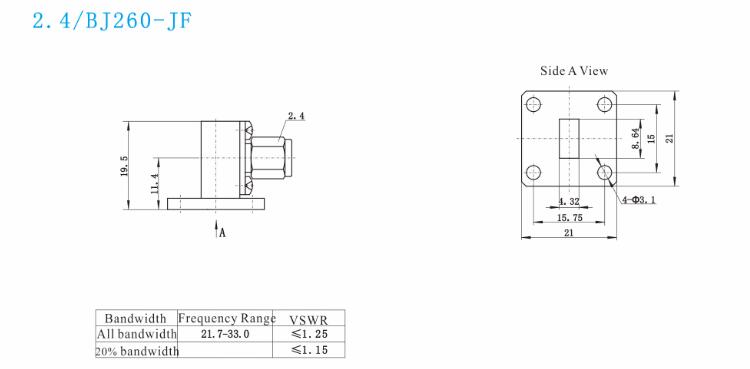

Outline Drawing(unit: mm)
