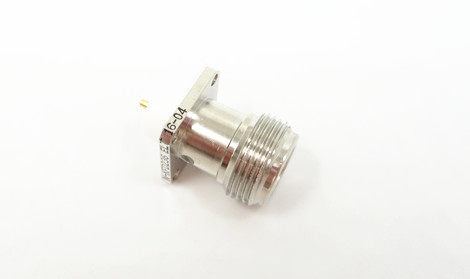

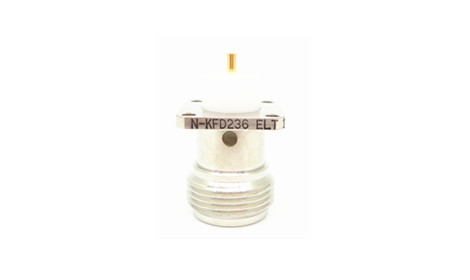

N Type Connector Female 4 Holes Flanges Mount

2019.05.11

N Type Connector Female 4 Holes Flanges Mount


N type connectors are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics and upto 11 GHz typical frequency range. Our frequency range can be up to 18 GHz. They are applicable to different types of RF cables and commonly adopted in aviation, aerospace, radar, microwave and digital communications, test and measurement instrument etc.
We can also customize various type-N connectors and adapters as per customers' different requirement. No matter what you need is straight or right angle, flange mount or bulkhead mount.


N-KFD236 (1)_副本.jpgN-KFD236 (3)_副本.jpg

Specification

Electrical Characteristics
Impedance50Ω
Frequency RangeDC~11GHz(Max.18GHz)
Rated Voltage1000VRMS*(Max.Sea Level)
Dielectrics Voltage-resistance1500VRMS*(Max.Sea Level)
Insulation Resistance≥500MΩ
Center ResistanceOuter conductor≤1.5mΩ
Center conductor≤0.5mΩ
VSWR≤1.3
Material & Mechanical Characteristics
Center ConductorMaleBrass, Gold plated
FemalePhosphor Bronze, Gold plated
Resilient ContactPhosphor BronzeNickel Plated Passivated
Shell / HousingBrass Stainless steelGold plated Passivation
Cable ClampBrassNickel Plated
InsulatorPTFE
GasketSilicone Rubber
Durability500 Cycles
