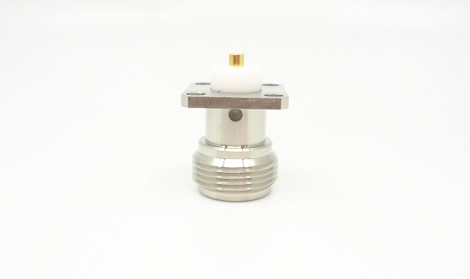

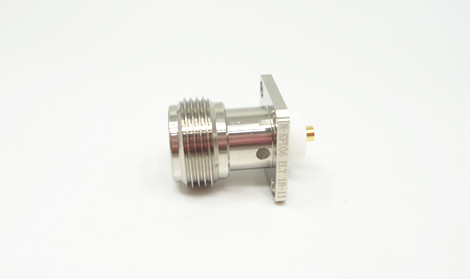

High Performance Female 4 Holes Flange Mount N RF Connector
2019.05.11
Female Nickel Plated N Type RF Connector 4 Holes Flanges Mount
N type connectors are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics and upto 11 GHz typical frequency range. Our frequency range can be up to 18 GHz. They are applicable to different types of RF cables and commonly adopted in aviation, aerospace, radar, microwave and digital communications, test and measurement instrument etc.
We can also customize various type-N connectors and adapters as per customers' different requirement. No matter what you need is straight or right angle, flange mount or bulkhead mount.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥500MΩ | |
| Center Resistance | Outer conductor | ≤1.5mΩ |
| Center conductor | ≤0.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |
