3.5mm to 2.4mm Type Male to Male (MMW)Millimeter Wave Adaptor Connectors

2019.04.02

Product Description:

The 3.5 series Millimeter Wave Adaptor is a common used millimeter wave connector, the frequency is 33 GHZ (up to 36 GHZ), use air interface, can mate and interchange with SMA series, K series connectors, With advantages of great bandwidth, high reliability,it is widely used in microwave measurement and millimeter wave devices.

The high precision 50 ohm coaxial 3.5mm to 2.4mm adaptor for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.

Specification:

Electrical Characteristics
Product Model	3.5/2.4-JJG
Impedance	50Ω
Frequency Range	DC~33GHz
Dielectrics Voltage-resistance	335VRMS*
Insulation Resistance	≥5000MΩ
VSWR	≤ 1.25
Center Conductor ≤ 3.0 mΩ Outer Conductor ≤ 2.0 mΩ
Material & Mechanical Characteristics
Center conductor	Brass, Gold Plated
Outer conductor	Beryllium Bronze Nickel plated; Stainless steel Passivation
Insulation Dielectric	PTFE
Temperature Range	-55 ~ +125℃

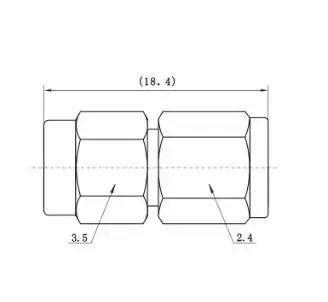

Product Drawing:

Application:

* Avionics, radars

* Navigation systems

* Missiles and guidance systems

* Research centres

* Satellite communications

* Telecommunication systems

* Instrumentation

* Automotive

* Computer/LANs

* Telecommunications
