3.5mm Female to Female China Millimeter Wave Connectors Adapters

2019.04.02

Product Description:


3.5 series is a common used millimeter wave connector, the frequency is 33 GHZ (up to 36 GHZ), use air interface, can mate and interchange with SMA series, K series connectors, With advantages of great bandwidth, high reliability,it is  widely used in microwave measurement and millimeter wave devices.


Specification:



Electrical Characteristics

Product Model

3.5-KKG

Impedance

50Ω

Frequency Range

DC~33GHz

Dielectrics Voltage-resistance

335VRMS*

Insulation Resistance

≥5000

VSWR

≤ 1.25

Center Conductor ≤ 3.0 mΩ  Outer Conductor ≤ 2.0 mΩ

Material & Mechanical Characteristics

Center conductor

Brass, Gold Plated

Outer conductor

Beryllium Bronze   Nickel  plated; Stainless steel  Passivation

Insulation Dielectric

PTFE

Temperature Range

-55 ~ +125

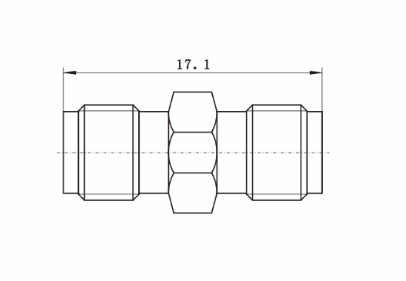

Product Drawing:





Application:


 * Instrumentation

 * Automotive

 * Satcom

 * Computer/LANs

 * Telecommunications

 * Avionics, radars

 * Missiles and guidance systems

 * Telecommunication systems

 * Navigation systems

 * Research centres

 * Satellite communications
