2.92mm(K) Male to 2.4mm Female Millimeter Wave MMW Adapter Connector

2019.04.02

2.92mm(K) Male to 2.4mm Female Straight Millimeter Wave MMW Adapter Connector


K-type millimeter wave connectors, also called 2.92mm MMW connectors, are one of the most common millimeter wave connectors with broad frequency range upto 40GHz. They can be mated with SMA and 3.5mm connectors.


These K-type (2.92mm) MMW connectors adopt air interface, which makes them small in size, light in weight and very reliable in connection, etc.


2.4mm Type product is a high performance millimeter wave connector, the frequency is 50 GHz, use air interface threaded connect,with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.


Specification:


Electrical Characteristics

Product Model

K-2.4-JKG

Impedance

50Ω

Frequency Range

DC~40GHz

Dielectrics Voltage-resistance

750VRMS*

Insulation Resistance

≥5000

VSWR

≤ 1.25

Center Conductor ≤ 3.0 mΩ  Outer Conductor ≤ 2.0 mΩ

Material & Mechanical Characteristics

Center conductor

Brass, Gold Plated

Outer conductor

Beryllium Bronze   Nickel  plated; Stainless steel  Passivation

Insulation Dielectric

PTFE

Temperature Range

-55 ~ +125

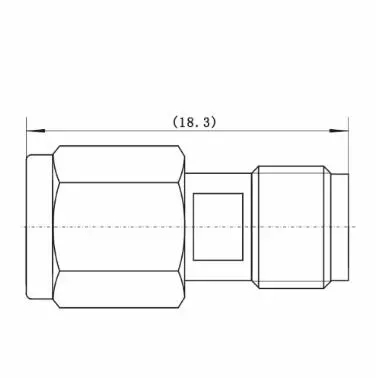

Product Drawing:


Application:



 * Avionics, radars

 * Navigation systems

 * Missiles and guidance systems

 * Research centres

 * Satellite communications

 * Telecommunication systems

 * Instrumentation

 * Automotive

 * Computer/LANs

 * Telecommunications
