2.92mm(K) Male to 2.92mm(K) Male Straight Millimeter Wave MMW Adapter Connector

2019.04.02

2.92mm(K) Male to 2.92mm(K) Male Straight Millimeter Wave MMW Adapter Connector


K-type millimeter wave connectors, also called 2.92mm MMW connectors, are one of the most common millimeter wave connectors with broad frequency range upto 40GHz. They can be mated with SMA and 3.5mm connectors.


These K-type (2.92mm) MMW connectors adopt air interface, which makes them small in size, light in weight and very reliable in connection, etc.


Electrical Characteristics

Product Model

K-2.4-KKG

Impedance

50Ω

Frequency Range

DC~40GHz

Dielectrics Voltage-resistance

750VRMS*

Insulation Resistance

≥5000

VSWR

≤ 1.05 + 0.005f

Center Conductor ≤ 3.0 mΩ  Outer Conductor ≤ 2.0 mΩ

Material & Mechanical Characteristics

Center conductor

Brass, Gold Plated

Outer conductor

Beryllium Bronze   Nickel  plated; Stainless steel  Passivation

Insulation Dielectric

PTFE

Temperature Range

-55 ~ +125

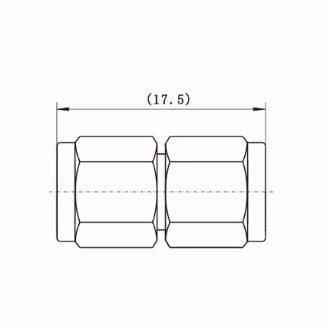

Product Drawing


Application:


 * Instrumentation

 * Automotive

 * Satcom

 * Computer/LANs

 * Telecommunications

 * Avionics, radars

 * Missiles and guidance systems

 * Telecommunication systems

 * Navigation systems

 * Research centres

 * Satellite communications
