Right Angle Micro-D Rectangular J30J 31 Pin MDM Connector for PCB

2019.04.10

Product Description:


This series product is equivalent to the American MDM series products, etc, the shell is aluminum alloy, contact space is 1.27mm, apply to the wire core section area is 0.1-0.15mm squared. This product performance comply with GJB2446A ( general specification for micro-miniature polarized shell rectangular electrical connectors),it is equivalent MIL-DTL-83513, it is divided to common(shell) and improved(shell) . With the small install space, light weight , reliable connect, excellent electromagnetic scree, good earthquake resistance, etc. It is widely used in small space required electronic equipment and apparatus.

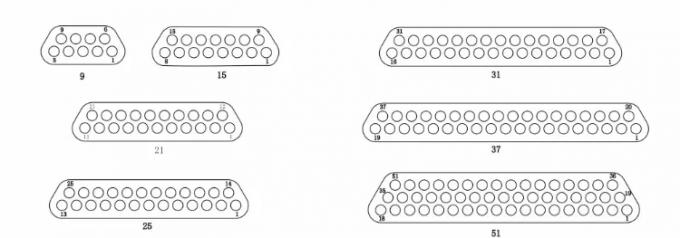

Contact Arrangements

(Face View of Pin insert)



Specification:


Current Rating3A
Voltage Rating300V
Insulation Resistance≥ 5000 MΩ
Durability500 cycles
Dielectric Withstand Voltage800
Environmental Temperature-55℃ ~ + 125℃
Relative Humidityup to 95% at +40℃
Vibration10Hz~ 2000Hz 196m/S²
Total acceleration RMS23.1G
Impact735m/S²

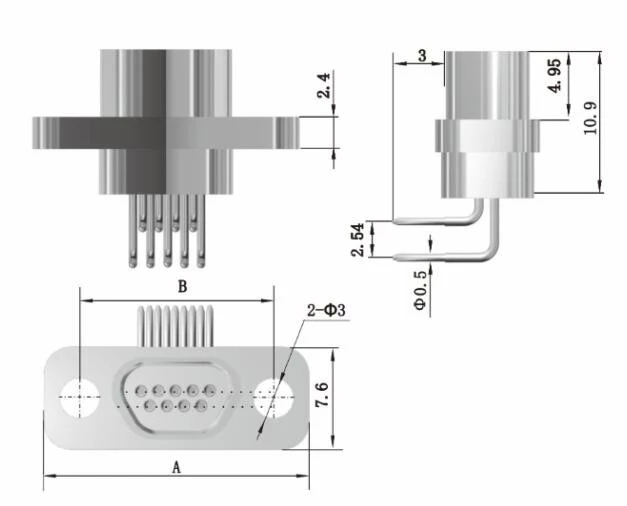

Outer Dimension Drawing:


Model No.AB
J30J-9ZKW-J19.614.35
J30J-15ZKW-J23.518.2
J30J-21ZKW-J27.422
J30J-35ZKW-J29.824.5
J30J-31ZKW-J33.628.3
J30J-37ZKW-J37.432.2


Types:


- J30J series

- J30JM( Hermetic) series

- J30(Plastic) series

- J50J series

- J55A series

- J55AM( Hermetic) series

- J56J series



Applications:


- Avionics, radars

- Missiles and guidance systems

- On-board equipment

- Telecommunication systems

- Research centres

- Military

- GPS

- UAV

- Communications

- Satcom

- Navigation systems

- Research centres

- Medical applications

- Surface Mount (SMT) Board to Cable
