Millimeter wave 3.5mm Female to 2.92mm Male Adapter

2019.04.03

Product Description:

The high precision 50 ohm coaxial 3.5mm to 2.92mm adaptor for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.

Specification:

Electrical Characteristics
Product Model	3.5/2.92-KJG
Impedance	50Ω
Frequency Range	DC~33GHz
Dielectrics Voltage-resistance	335VRMS*
Insulation Resistance	≥5000MΩ
VSWR	≤ 1.25
Center Conductor ≤ 3.0 mΩ Outer Conductor ≤ 2.0 mΩ
Material & Mechanical Characteristics
Center conductor	Brass, Gold Plated
Outer conductor	Beryllium Bronze Nickel plated; Stainless steel Passivation
Insulation Dielectric	PTFE
Temperature Range	-55 ~ +125℃

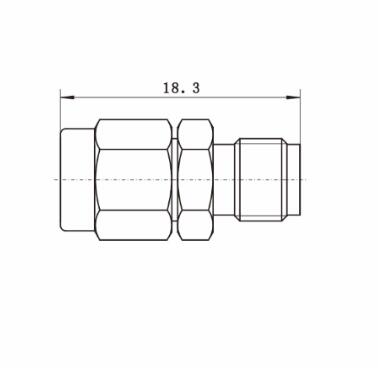

Product Drawing:

Features:

• The 3.5mm to 2.92mm RF adaptor is a precision microwave connectors.

• Stainless steel construction

• Superior electrical performance to 40 GHz

• Connectors in End Launch and Flange options

• Adapters to 2.4mm, SMP, 2.92mm, SMA.

• Connector mating interface per MIL-STD-348

• Great for applications that require high frequency transmission

Application:

* Avionics, radars

* Navigation systems

* Missiles and guidance systems

* Research centres

* Satellite communications

* Telecommunication systems

* Instrumentation

* Automotive

* Computer/LANs

* Telecommunications
