2.92mm K Female Four Hole Flange Panel (MMW)Millimeter Wave Connectors

2019.04.02

Product Description:


K-type millimeter wave connectors, also called 2.92mm MMW connectors, are one of the most common millimeter wave connectors with broad frequency range upto 40GHz. They can be mated with SMA and 3.5mm connectors.


These K-type (2.92mm) MMW connectors adopt air interface, which makes them small in size, light in weight and very reliable in connection, etc.


Specification:



Electrical Characteristics

Product Model

K-KFKG

Impedance

50Ω

Frequency Range

DC~40GHz

Dielectrics Voltage-resistance

750VRMS*

Insulation Resistance

≥5000

VSWR

≤1.25

Center Conductor ≤ 3.0 mΩ  Outer Conductor ≤ 2.0 mΩ

Material & Mechanical Characteristics

Center conductor

Brass, Gold Plated

Outer conductor

Beryllium Bronze   Nickel  plated; Stainless steel  Passivation

Insulation Dielectric

PTFE

Temperature Range

-55 ~ +125

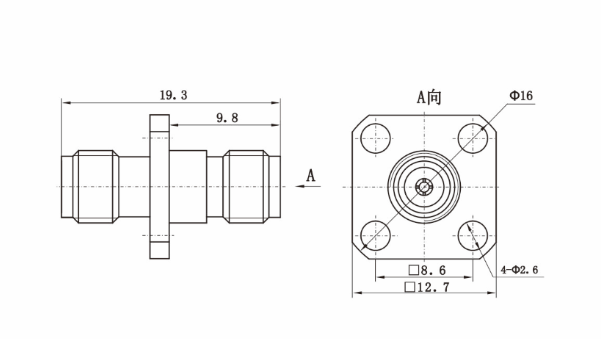

Product Drawing:





Features:


 • The frequency is 40GHz

 • It can mate and interchange with SMA series, K series ,2.4mm,3.5mm connectors.

 • Superior electrical performance up to 40 GHz

 • It have the advantages of small volume, light weight, high use frequency, reliable connect.

 • Great for applications that require high frequency transmission

 • Connector mating interface per MIL-STD-348

 • Superior electrical performance up to 40 GHz

 • Female contacts have unique three-slot construction

 • An air dielectric with a loss-loss plastic center conductor support.


Application:


 * Instrumentation

 * Automotive

 * Satcom

 * Computer/LANs

 * Telecommunications

 * Avionics, radars

 * Missiles and guidance systems

 * Telecommunication systems

 * Navigation systems

 * Research centres

 * Satellite communications
