3.5mm to 2.4mm Type Straight Female to Female (MMW)Millimeter Wave Adaptor Connector
2019.04.01
The high precision 50 ohm coaxial 3.5mm to 2.4mm adaptor for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.
Specification:
Electrical Characteristics | |
Product Model | 3.5-2.4-KKG |
Impedance | 50Ω |
Frequency Range | DC~50GHz |
Dielectrics Voltage-resistance | 250VRMS* |
Insulation Resistance | ≥750MΩ |
VSWR | ≤1.25 |
| Center Conductor ≤ 3.0 mΩ Outer Conductor ≤ 2.5 mΩ | |
Material & Mechanical Characteristics | |
Center conductor | Brass, Gold Plated |
Outer conductor | Beryllium Bronze Nickel plated Stainless steel Passivation |
Insulation Dielectric | PTFE |
Temperature Range | -55 ~ +125℃ |

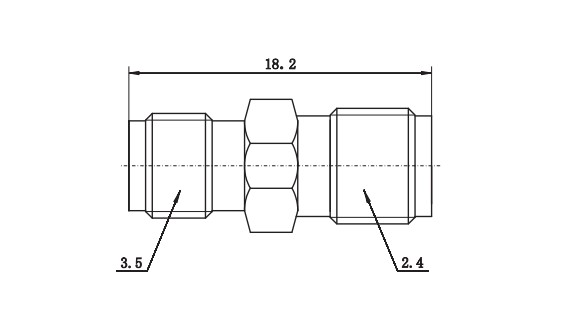

Product Drawing:
