J30JM Hermetic Miniaturized Rectangular Series Connector

2018.11.22


J30JM 副本.jpg

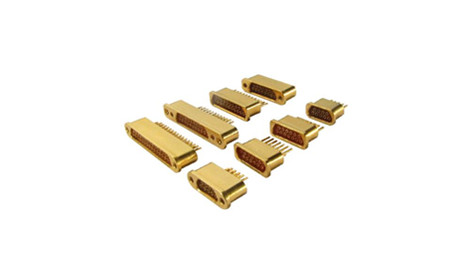

J30JM Hermetic Miniaturized Rectangular Series Connector


The socket of this series is hermetic, the medium is sintered by glass, the contact pitch is 1.27mm, For end termination styles, they can be applicable to wires with sectional area 0.1-0.15mm2or soldered onto PCB directly. These products are designed exclusively for applications with hermetic sealing requirements. They have the characteristics of small size, light weight, reliable connection, excellent electromagnetic shielding performance, anti-vibration and impact resistance.


Specification:


Technical Characteristics

Rated Voltage

100V

Rated Current

3A

Leak Rate

≤1.01 X 10-3Pa·cm³/s

Contact Resistance

≤10MΩ

Insulation Resistance

≥ 1000 MΩ

Dielectrics Voltage-resistance

300V

Mechanical life

500 cycles

Environmental Conditions

Environmental Temperature

-55℃ ~ + 125℃

Relative Humidity

+40℃ up to 95%

Low Gas Pressure

4.4KPa 65V

Vibration

10Hz~ 2000Hz  196m/s²

Shock

Acceleration 735m/s²  11ms


Contact Arrangements:


J30JM  孔位排列.jpg


Applications:

* Avionics, radars

* Missiles and guidance systems

* On-board equipment

* Telecommunication systems

* Navigation systems

* Research centres

* Medical applications

* Cable to Cable

* Board to Cable

* Surface Mount (SMT) Board to Cable
